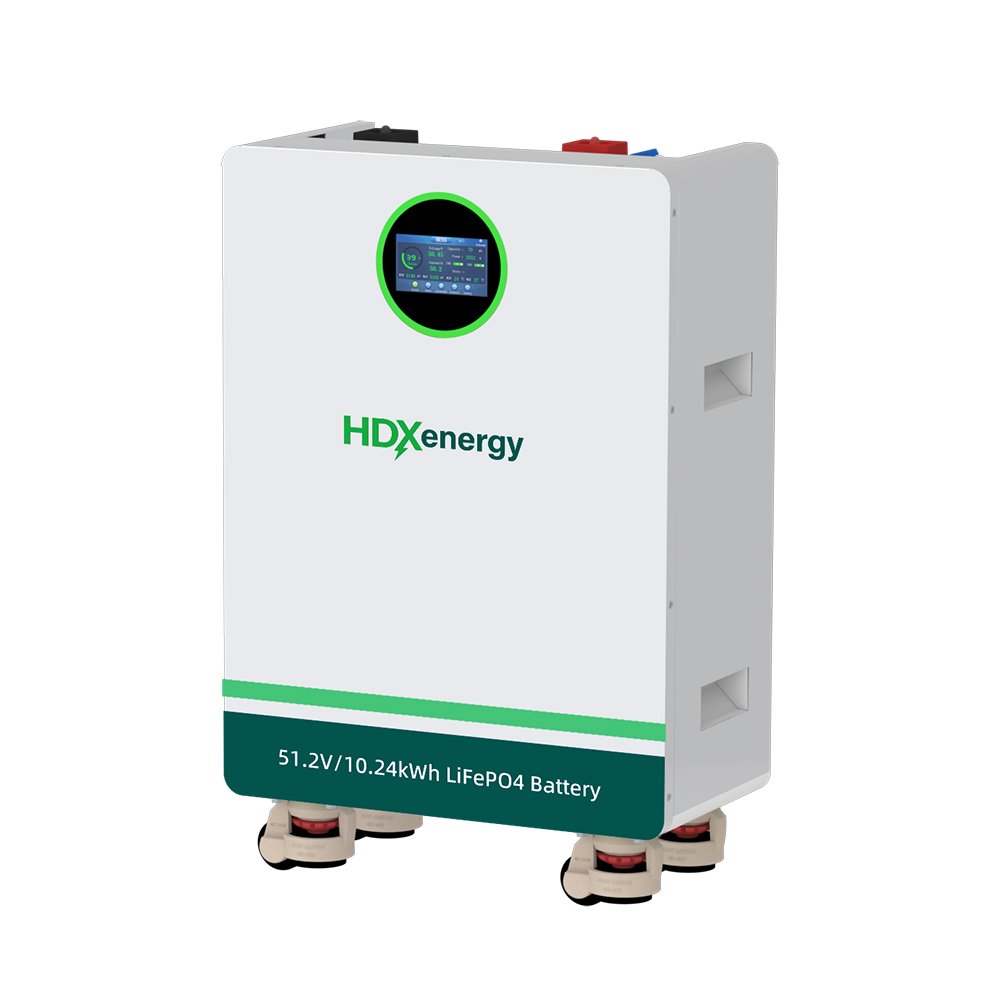

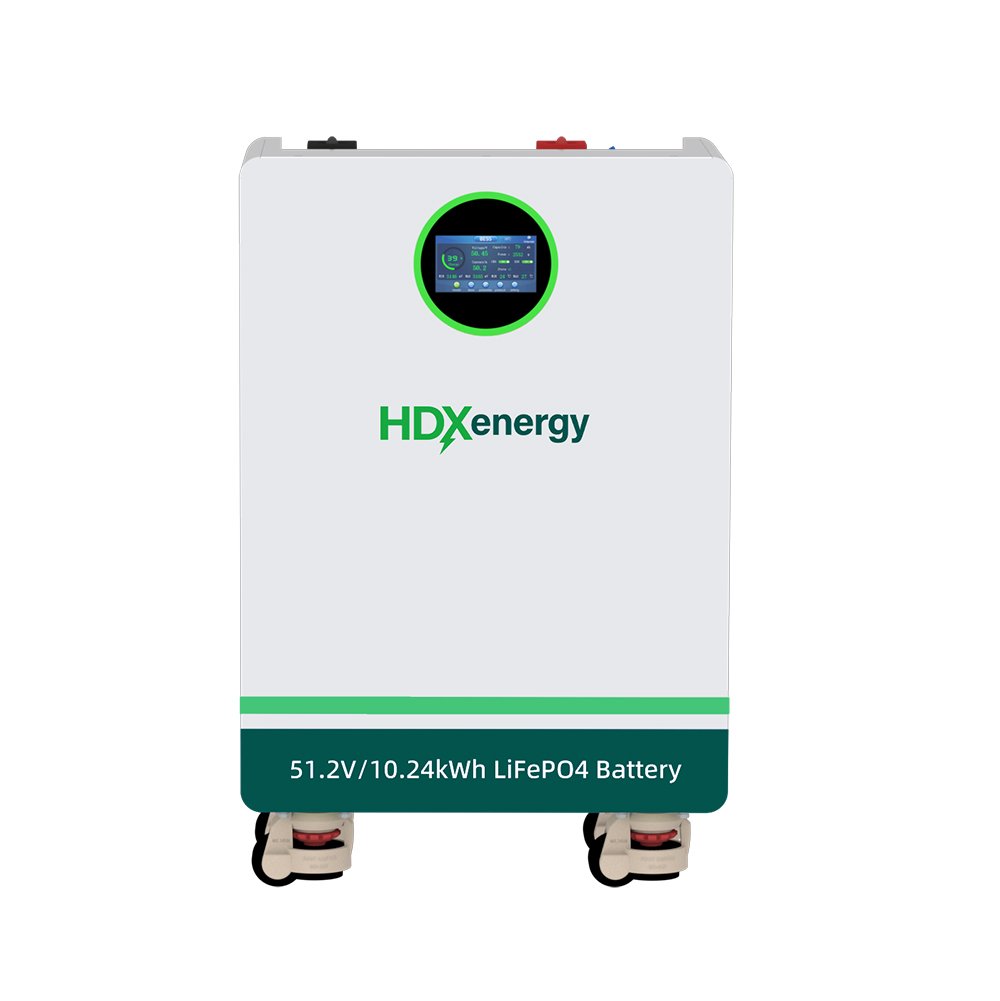

H096-10kWh Floor-Standing Battery Service Provider | Scalable Storage

Product Features

Built-in 200 A LiFePO₄ BMS
6 500+ deep cycles @ 90 % DOD, giving ≥ 15-year design life
7-inch color touchscreen shows real-time volts, amps, SOC and daily savings
Scales up to 16 units in parallel, delivering 200 A charge/discharge and 10.24 kWh of AC-ready power.

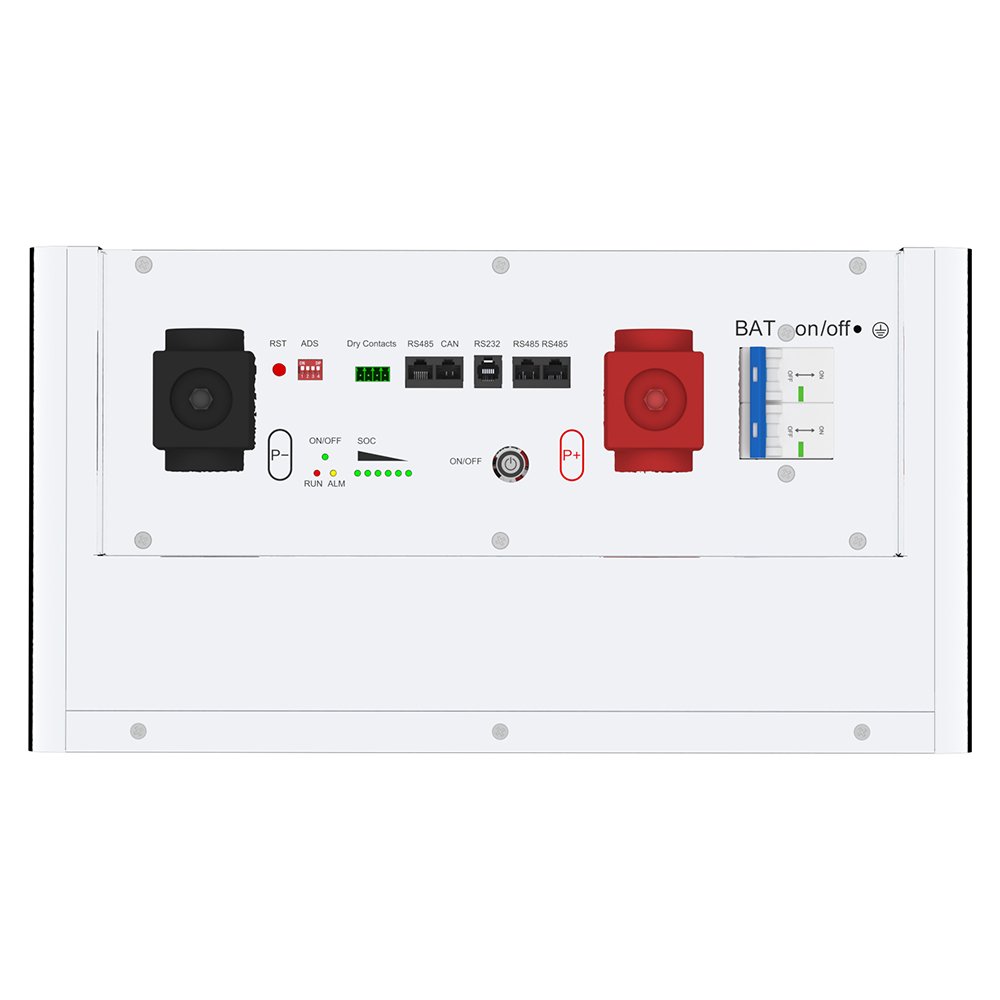

Built-in smart BMS with CAN/RS485 ports for plug-and-play pairing with mainstream 48 V inverters (Deye, Solis, Goodwe, etc.)

Model	H096-10kWh class
Battery capacity	200Ah/51.2V (10.24kWh)
Size (LWH)	L460mmW245mmH620mm
Weigh	95 kg
Battery type	LiFePO4
Battery voltage range	40~58V
Communication mode	Support WIFI bluetooth connection with mobile APP
Communicate	RS485/CAN
Battery cycle life	After 3000 cycles,the remaining capacity is still more than 80%
System protection	Over temperature protection/Over voltage protection/Over current protection/Over charge protection/Over discharge protection/Load short circuit protection/Over load protection.
Discharge temperature	-20℃~50℃ (The recommended ambient temperature is 20℃ to 30℃.)
Charging temperature	-5℃~50℃ (The recommended ambient temperature is 20℃ to 30℃.)
Storage temperature	The recommended ambient temperature is 0℃ to 45℃
User Interface	LCD
Protection level	IP20
Installation mode	Floor-standing
Certification standards	CE FCC ROHS
