Description

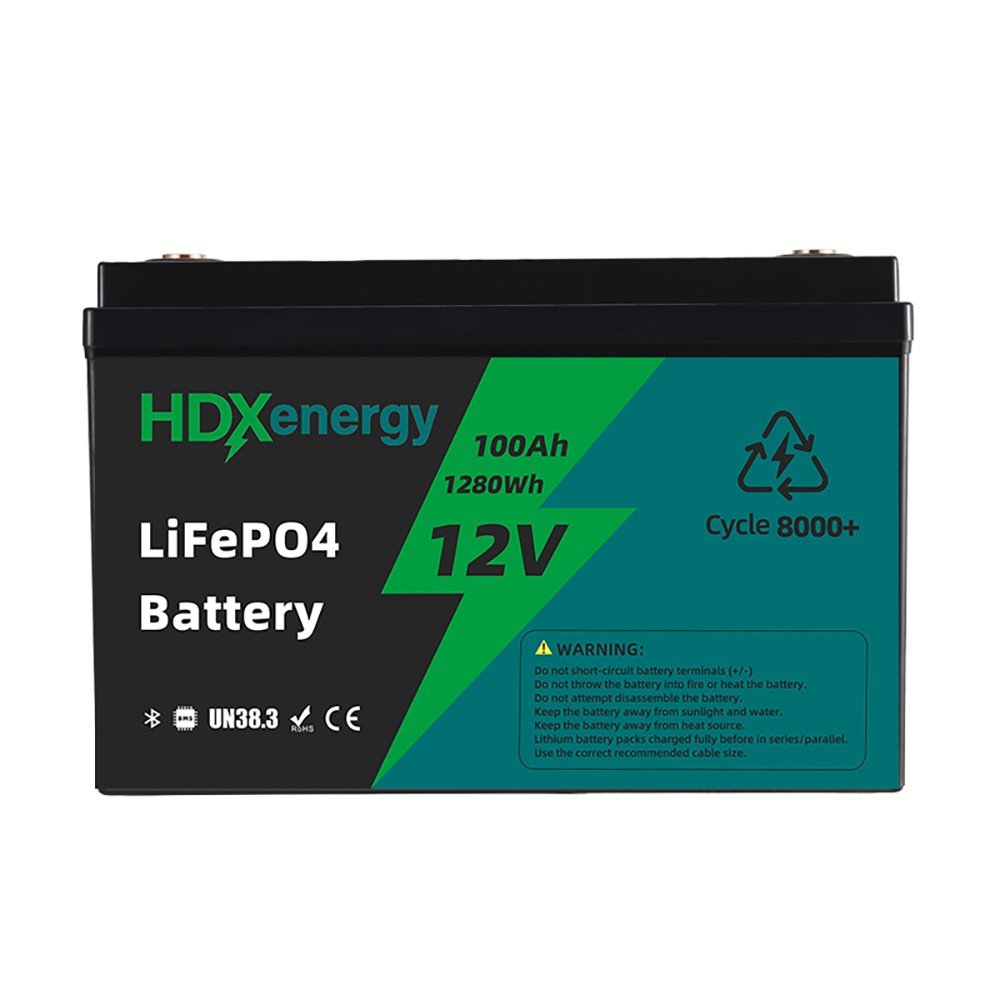

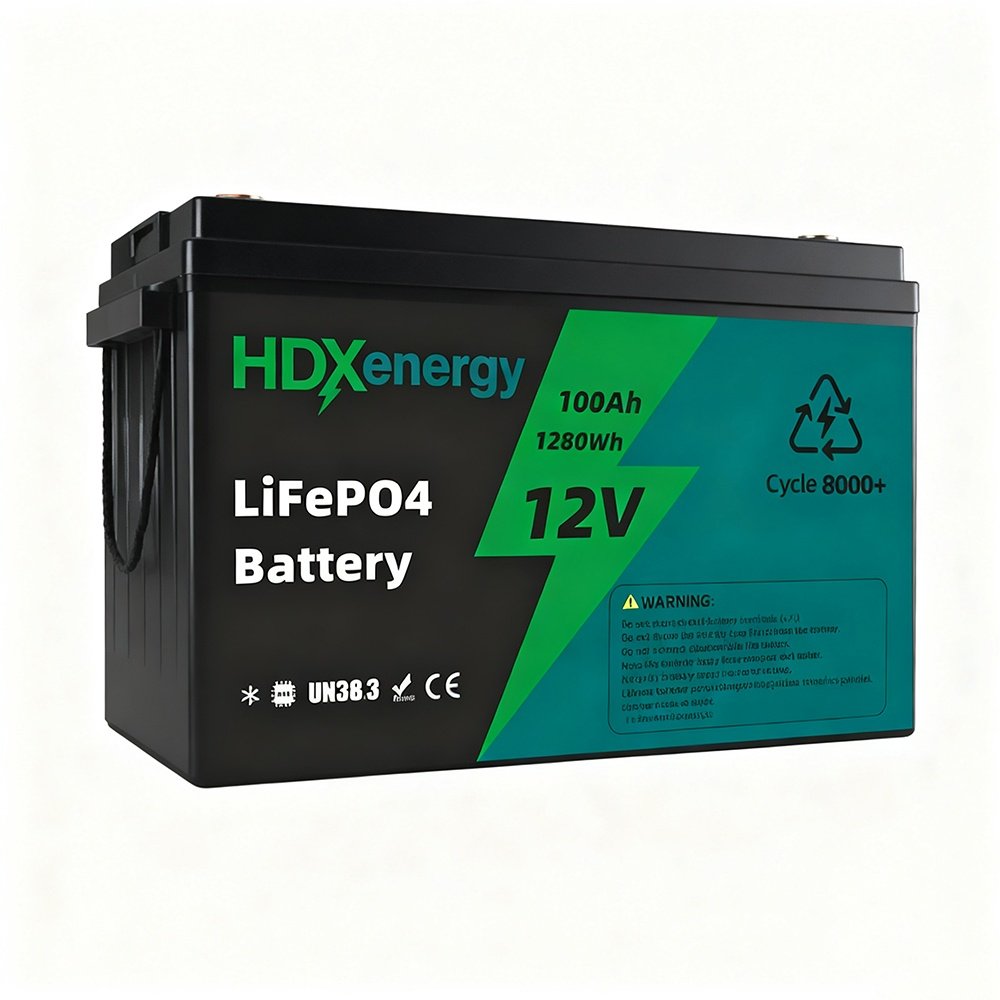

HM-LF12100 12.8V 100Ah
General Specification
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 8000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| tandard Charging | Max.Charging Voltage | 14.0~14.6V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Charging Current | 50A | |
| Max.Charging Current | 100A | |
| Standard Discharging | Discharging Current | 100A |
| Max. Continuous Current | 100A | |
| Max.Pulse Current | 200A(<3S） | |
| Discharging Cut-off Voltage | 10.0 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |

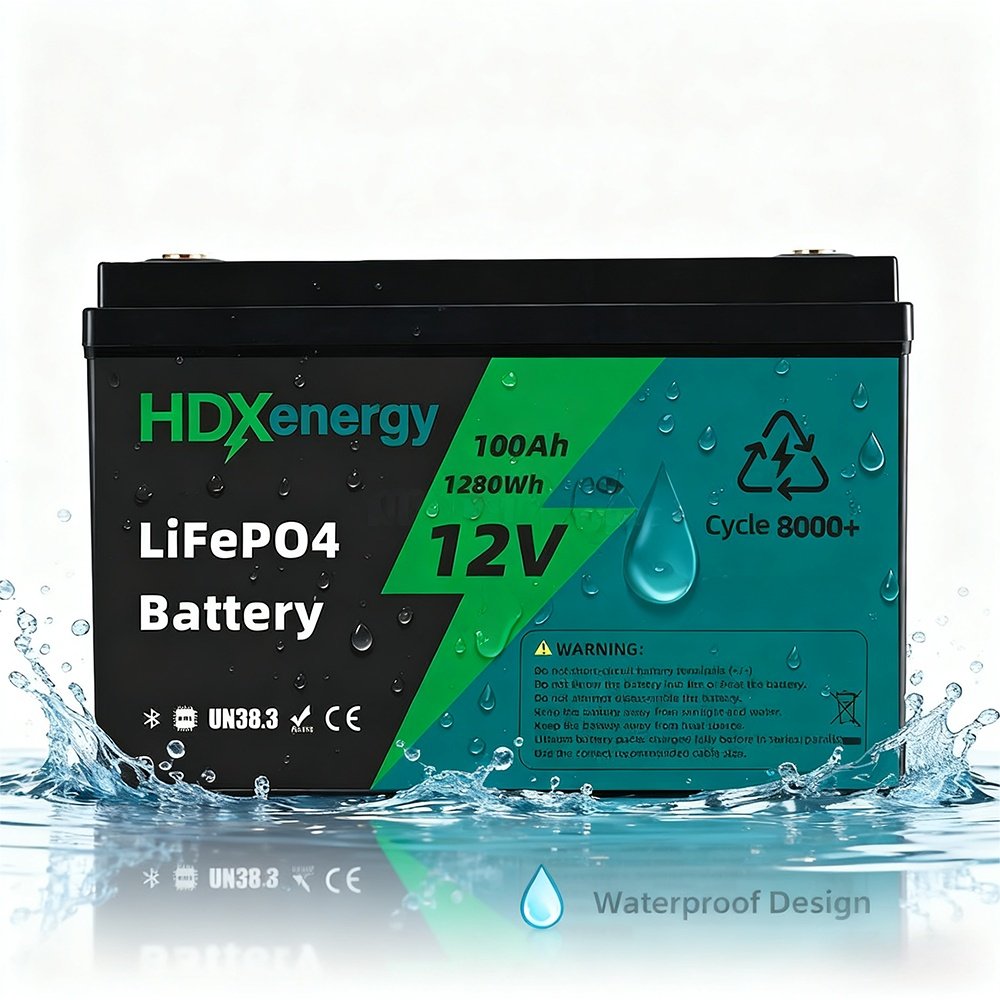

| Water Dust Resistance | IP55 | |
| Structure | Cell & Format | LFP3.2V100Ah (4S1P) |
| Casing | Plastic | |
| Dimension(LWHTH) | 330172215mm | |
| Package Dimension | 360210*260mm | |
| Weight | Approx. 10Kg | |
| Terminal | M8 |
